REQUEST FORM FOR STEEL TELESCOPIC COVERS
Company Name
Telephone
Contact Person
Fax
Address
E-Mail
Dealt by:
Date
(dd/mm/year)
1. COMPULSORY DATES FOR QUOTATION PREPARATION
1.1 Requested number of covers:
Serial Production
Spare part

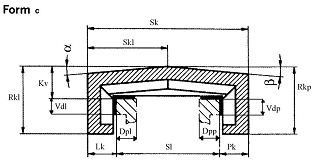

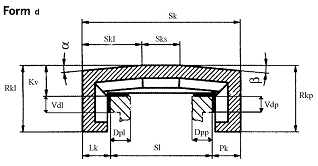

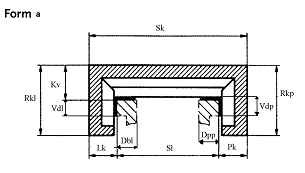

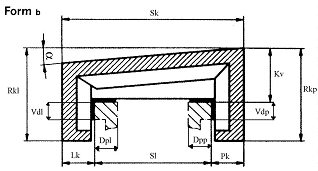

1.2 Requested form of telescopic covering:
1.3 Working position of drawing (see 4.2):
Horizontal
Lateral
Vertical
Sloping
1.4 Requested stroke H
mm
Machine dimensions
1.5 Shrank length L min:
mm
1.6 Max. extended length L max:
mm
1.7 Overlap of the biggest part Z1:
mm
1.8 Overlap of the smallest part Z2:
mm
1.9 Traveling speed v:
m/min
1.10 Material:
Common Steel
Cr - Ni steel
1.11 Bed width Sl
mm
1.12 Cover width
mm
- sloping part of cover-left Skl
mm
- central part of cover Sks
mm
1.13 Cover arm height - left Rkl
mm
1.14 Cover arm height - right Rkp
mm
1.15 Cover height over the bed Kv
mm
1.16 Slide way width - left Dp l
mm
1.17 Slide way height - left Vdl
mm
1.18 Slide way width - right Dpp
mm
1.19 Slide way height - right Vdp
mm
1.20 Lower arm left Lk
mm
1.21 Lower arm right Pk
mm
1.22 Declivity left :
°
1.23 Declivity right ß:
°
1.24 Slide way hardness > 60 HRC:
Yes
No
1.25 Non-movable part of the cover:
Biggest
Smallest
None
2. COMPLEMENTARY DATA
2.1 speed-up a
m/s2
2.2 Working environment
Wet
Dry
Combined
2.3 External loading of cover (cca. 80 kg)
Yes
No
2.4 Machine type
2.5 Axle
X
Y
Z
2.6 Lubricant
2.7 Sort of splints
2.8 Environmental temperature
°c
2.9 Type of straight way (enclose the drawing)
2.10 Placing of maker`s badge (draft)
3. EQUIPMENT
3.1 Sort of wiper:
Cr-Ni profile + wiper
polyurethane
drawn profile + wiper
polyurethane
brass
TSA 8 PU or TSA 12 PU
3.2 Sliding shoe:
Brass
Brass with a special sliding coat
Plastic
3.3 Supporting roller:
Steel
Plastic
3.4 Suspension equipment:
3.5 Discharge trough:
3.6 Special forms, spurious parts, fastening hole:
enclosed on a special sheet
none
3.7 Drawings, drafts, photos, remarques:
4. DRAWING ENCLOSURE
4.1 Dimension indication of cover

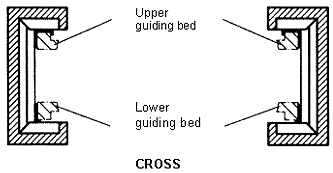

4.2 Working position of cover
