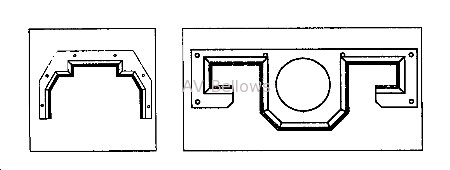

Way Wipers

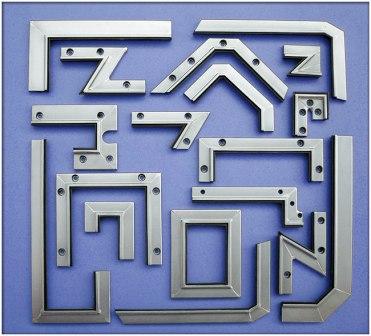

ab1ab2ab3

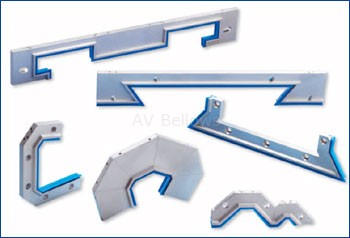

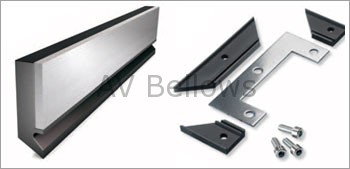

Most of our way wipers have Stainless-Steel-Cases which give them high stability and mechanical loading capacity. The sealing on the backside avoids penetration of coolants. There are no parting lines and glueing problems. The wipers lip material is normally high-quality polyurethane material, for the FBA-V and FBA-E wiper types we use synthetic rubber.



Most types come in standard lengths of 500mm / 19.7 Inch and 1.000 mm /39.4 Inch. All wipers can be made customized to your specification, they are ready to be mounted. No mounting holes are necessary for the readjustement, all screw heads are sinkable The wiper lips are easy to replace.


The wiper lip is made of high-quality material with following features:

  • - Excellent mechanical properties
  • - High resistance to abrasion
  • - Resistance to permanently elevated temperature 90°C /220°F
  • - Resistance to short-term elevated temperature 130°C/290°F
  • - Restricted resistance to acids, alkaline solutions, benzine
  • - Restricted resistance to mineral oil and coolants
  • - Excellent resistance against hydrolyze and microorganisms

ab5

Way Wipers

OTHER IMPORTANT FEATURES

WIPERS TYPES AND SIZES

EASY FOUR STEP INSTALLATION

MEASURING

CUTTING

PINNING

MOUNTING

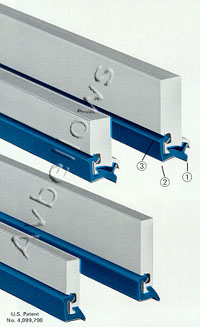

Standard Strip Wipers

Style
Length mm/inches
A1
560/22.0
A2
560/22.0 1000/39.4
A2 Cover
560/22.0
A2B
560/22.0
A3
560/22.0
A4
560/22.0
A5
560/22.0
A6
560/22.0 1000/39.4
A7
560/22.0
A7B
560/22.0
A8
560/22.0
A9
560/22.0
A10
560/22.0
A11
560/22.0

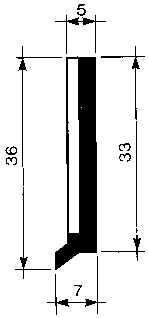

A12
560/22.0
A13
560/22.0
A14
560/22.0
A15
560/22.0
A17
560/22.0
N1
560/22.0
N2
560/22.0
N3
560/22.0
